Innovative Solutions for challenging component tubing

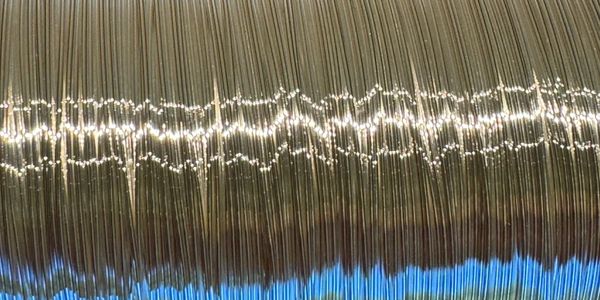

Do you need silver plated copper mandrel for your project but don't need a 500 lb spool? Let us help.

We specialize in short run, tight tolerance silver plated copper.

Capabilities:

• Size Ranges - 0.010"-0.090"
• Tolerances - as low as +/- 0.0002" depending on size
• Spool lengths - Up to 10,000 feet depending on size
• Hardness - As drawn or annealed (20-25% minimum elongation)

Benefits of silver-plated copper mandrels:

• Stable at temperature up to 850F. Will not melt, ovalize or stretch under high processing temps.
• Can be annealed to allow for the wire to be elongated for easy removal post process
• Tight tolerances to give your product precise ID control

Do you have a demanding application and need maximum lubricity for guaranteed release? Are you working with low durometer or tacky polymers? We have the answer with our PTFE coated mandrels.

Capabilities:

• Size Ranges - 0.006"-0.090"
• Tolerances - as low as +/- 0.0003" depending on size
• Spool lengths - Up to 10,000 feet depending on size
• Elongation 20-25% minimum

Benefits of PTFE coated mandrels:

• Can be applied to annealed stainless-steel or silver-plated copper mandrels to allow for a wide range of applications.
• Stable at temperatures up to 600F. Will not melt, ovalize or stretch under high processing temps.
• Guaranteed easy removal due to the non-stick, lubricious PTFE coating even on soft or sticky polymers.
• 20-25% minimum elongation to facilitate easy removal of the mandrel post processing
• Tight tolerances to give your product precise ID control
